    Detailed Product Description
    Color: White Weight: 80kg
    Maximum Acceleration: ≥100°/s Display: 19"/23"

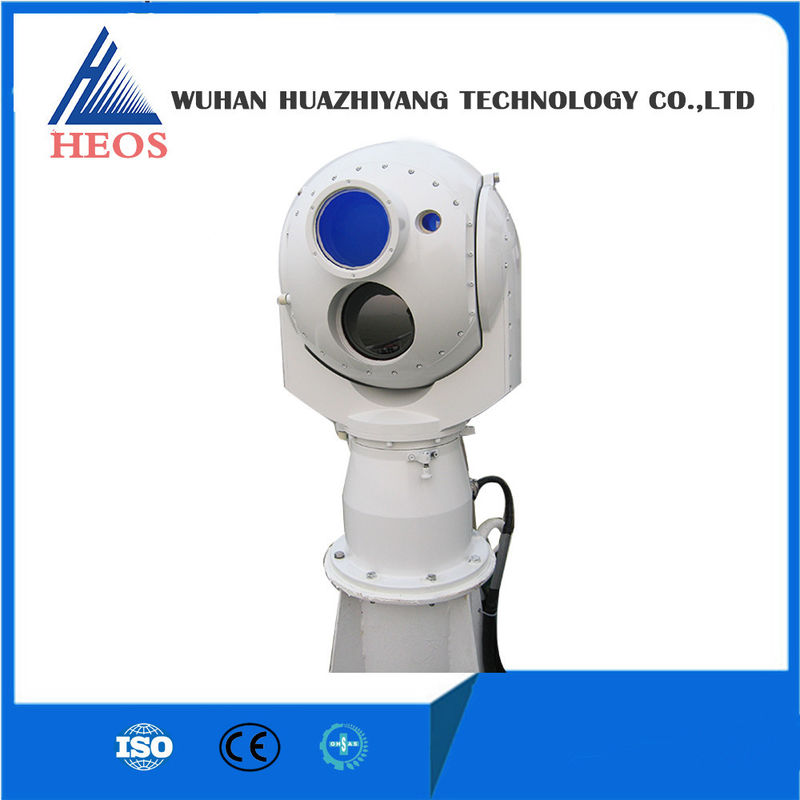

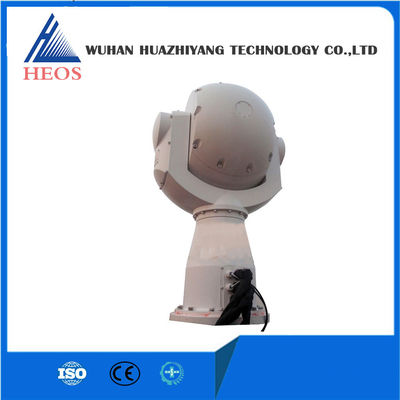

    Shipboard Electro-optical Tracking System



    Main functions



    • Perform observation, surveillance and search for the targets on air and sea targets in all weather conditions in 24h.
    • Provide manual and automatic scan and search for the target
    • Provide automatic target tracking
    • Provide the radar guidance and tracking function
    • Gyroscope servo stabilization to effectively isolate the ship from swaying
    • Color, B/W, infrared, thermal imaging multi-channel imaging system
    • Provide electric control of focus, zoom etc.
    • Provide real-time video recording function, receive the information date from compass, GPS (Beidou), radar. display the information on the same screen and record time and date
    • Provide long range control function
    • Provide good anti-vibration and anti-shock capability designed for adverse sea environment
    • Provide interface of RS422, 100M Ethernet and video output.
    • Outboard director charged with nitrogen is wholly sealed in order to operate in long use in the adverse sea salt atmospheric environment.
    • Provide certificate of type approval and CCS product certification

    Application areas

    • Law enforcement official ship: maritime surveillance ship, maritime patrol ship, fishery administration ship, customs anti-smuggling ship and maritime police vessel
    • Rescue ship, salvage vessel and high speed passenger vessel
    • Electro-optics shore-based surveillance and search system


    Description



    The director of HEOS series shipboard electro-optics tracking, surveillance (evidence-taking) system is installed on the top deck of the ship, display and control console is installed in the pilot room. The targets are observed, monitored and searched by the high performance color CCD camera system in the daytime, are searched and observed by the infrared thermal imaging system at night.
    HEOS series shipboard electro-optics tracking, surveillance (evidence-taking) system adopts advanced gyroscope stabilized technology, and computer image processing and control technology, it is able to effectively isolate from the swaying of the ship, and detect, track, monitor and record sea environment, sea ships and floater and air targets.



    Main specification



    Type HEOS-300A HEOS-300B HEOS-300C HEOS-103
    Electro-optics sensor
    CCD video system Camera ≥1/1.8”CCD, 3 million pixel high resolution dual-mode camera 1/2”CCD, color/B/W dual-mode camera 1/2”CCD, color/B/W dual-mode camera
    Lens 20~700mm 15~370mm ≥200mm
    IR imager Detector Cooled type: operational waveband 3~5μm, NETD≤30mK Uncooled type: operational waveband 7.5~13.5μm, NETD≤50mK
    Lens 30/150/500mm 3 zoom or 75/300mm two zoom 44mm/132mm 2 zoom or 75mm, 100mm focus 44mm/132mm 2 zoom or 75mm focus
    Laser (optical) Illuminator Wavelength 810nm, output power≥10W; divergence angle 1°~10, continuously adjustable
    Dazzler Wavelength 532nm, output power≥2000mW, continuously adjustable; divergence angle<2mrad; flash frequency 0~20Hz, continuously adjustable; operational distance: daytime≥1km, night≥2km
    Range-finder Range: 150m~5km, 150m~10km optional; accuracy: ±5m None
    Electro-optics director
    Rotation range Pan: ±170°/0~360°; Tilt: -60°~+85°adjustable

    Pan: 360°continuously;

    Tilt: -60°~+30°adjustable

    Maximum speed ≥40°/s Pan: 30°/s; Tilt: 15°/s
    Maximum acceleration ≥120°/s ≥100°/s ≥60°/s
    Gyro stabilization Yes Optional
    Auto tracking Yes None
    Outline dimension

    Turning radius: 350mm;

    Height: 1100mm

    Turning radius: 300mm;

    Height: 850mm

    Turning radius: 250mm;

    Height: 750mm

    Turning radius: 430mm;

    Height: 475mm

    Weight 120kg 80kg 60kg 50kg
    Display and control console
    Display 19”/23” ≥15”
    Hard disk video recorder High resolution digital and standard analog video recorder, over 15days continuously record period Standard analog video recorder
    Electrical interface Video interface BNC/network
    Communication interface RS422/RS232/RS485/network None
    Weight 72kg 70kg 50kg 20kg
    Operational distance In condition of good visibility, target ship: 24m x 8m, ship name &ship no.: 0.6m x 0.6m
    Daytime Detect target ship ≥25km ≥15km Detection distance for person in water≥1.5km
    Recognize target ship ≥15km ≥7km
    Indentify ship no. ≥1.5km ≥1.5km
    Night Detect target ship ≥20km ≥7km Detection distance for person in water≥600m
    Recognize target ship ≥10km ≥3km
    Indentify ship no. ≥1km ≥1km
    Environmental adaptability
    Operational temperature Outboard: -20℃~+55℃, inboard: -10℃~+45℃
    Storage temperature Outboard: -20℃~+55℃, inboard: -10℃~+45℃
    Rainfall, compact, vibration, moisture, salt spray Outboard director GJB150, inboard display and control device GB/T6994
