|Place of Origin:||Wuhan, China|
|Minimum Order Quantity:||1|
|Delivery Time:||180 days|
|Table's Weight:||About 700kg||Wobble Error:||±2"|
|Rotational Angle Range:||Continuous, Unlimited||Operation Mode:||Position, Rate, Swing|
motion simulator with temperature chamber,
temperature chamber rate table

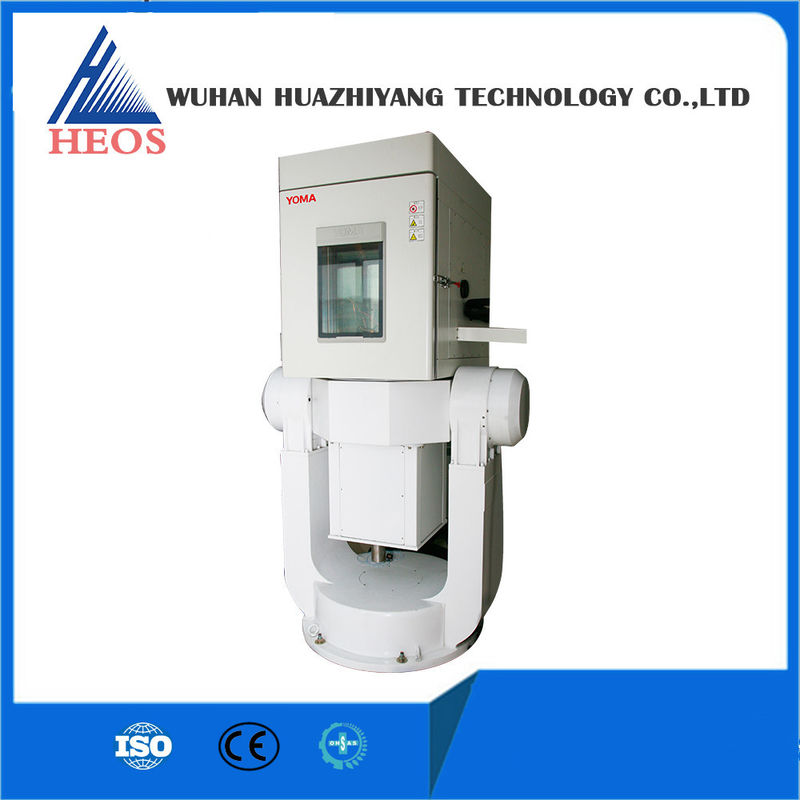

2 Axis Rate Table with Temperature Controlled Chamber
2 axis rate table with temperature chamber applies 2 axis U-T frame. It is able to do the multi-functional simulation test in condition of high and low temperature. It provides position, rate, swing, high and low temperature test etc.and meet the requirement of all functional tests and experiments for the inertial system and inertial parts.
|Installation dimension of measured device||φ500mm×400mm|
|Table's weight||About 700Kg|
|Table surface dimension||φ530mm|
|Table surface beating||0.02mm|
|Rotational angle range:||Continuous, unlimited|
|Operation mode||Position, rate, swing|
|Slip ring||User's slip ring(customized number and power)|
|Electrical control cabinet||Standard cabinet|
|Computer system||Industrial control computer,Windows interface,RS422,Ethernet(≥100Mbps),
Receiving pulse synchronized signal(≥100Hz), 1°,10°,360° pulse output
|Safety precaution||Real-time display system status and safety protection status, take fault tolerance checking for command to prevent misoperation.|
|Angular position measuring accuracy||±2″|
|Angular position measuring resolution||0.36″|
|Angular position measuring repeatability||±1″|
|Angular position control accuracy||±1″|
|Rate range||Inner axis:±0.001°/s～600°/s；outer axis ±0.001°/s～300°/s|
|Rate accuracy and stability||0.00003(360° average)|
|Maximum acceleration||Inner axis:500°/s2；outer axis200°/s2|
|Internal dimension of temperature chamber||550mm(W)×600mm(W)×520mm(H)(Effective height≥420mm)|
|Temperature control range||-45℃～+70℃(Capability range -55℃～+120℃)|
|Temperature control accuracy and uniformity||±1℃(Empty chamber)|
|Temperature lift rate||1℃/min～2℃/min|
|Driver mode||Torque motor direct driver|
Situated in the East Lake High Tech Development Zone, Wuhan Huazhiyang Technology Co., Ltd. is a high tech enterprise established in converting the military technology into civilian product and industrialization, The company has been approved by ISO 9001 quality control system and ISO 14001 environmental system, it is identified as “high tech enterprise” by Wuhan government, has the self-supported import and export right.
Our company owns a group of well educated personnel with research and development ability and management ability, and also has a composite, high efficient, marketing and after service team. The scientific and technical personnel make up 68% of the total employees, with optimized personnel structure and high specialization.
Our company is engaged in research and development, production, technical sales and service etc. of the optical products including large scale electro-optics system, measurement and control system, military series ruggedized displays etc. The company has provided high quality products and servings for over 20 industries including water conservancy, electrical power, chemical industry, petroleum, manufacture of building materials, automotive manufacturing, aerospace, weapons, ship, police, armed police, frontier defense, customs, maritime, salvage, fishery administration, maritime surveillance etc.
