Product Details:
Payment & Shipping Terms:
|
| Name: | 3 Axis Rate Table With Temperature Chamber | Model: | WKZT3-60 |
|---|---|---|---|
| Table's Weight: | About 2950Kg | Table Surface Dimension: | φ840mm |
| Table Surface Flatness: | 0.05mm | Table Surface Beating: | 0.03mm |
| High Light: | 2 axis rate table,single axis rate table |
||
3-Axis Motion Simulators
When A Device Under Test Needs To Be Stimulated With Simultaneous Movements Around Three Axes, Then A Product From The ACUTRONIC Three-Axis Motion Simulator Range Is The Right Choice.
Independent Motion Simulation In Three Axes Makes Them Very Versatile: They Are Used As Inertial Guidance Test Systems (IGTS), For HardWare-In-The-Loop (HWIL) Testing, For The Test Of Optronic (EOTS) Pointing Devices, And Many More Applications.

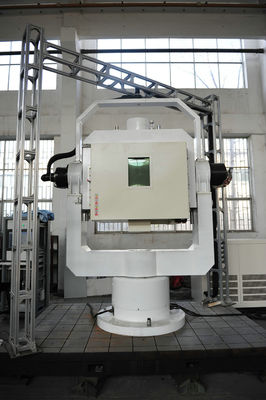

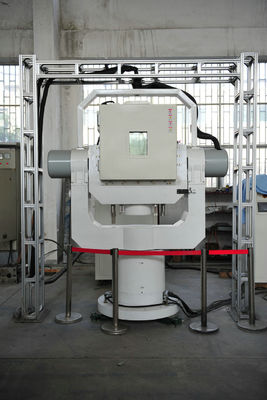

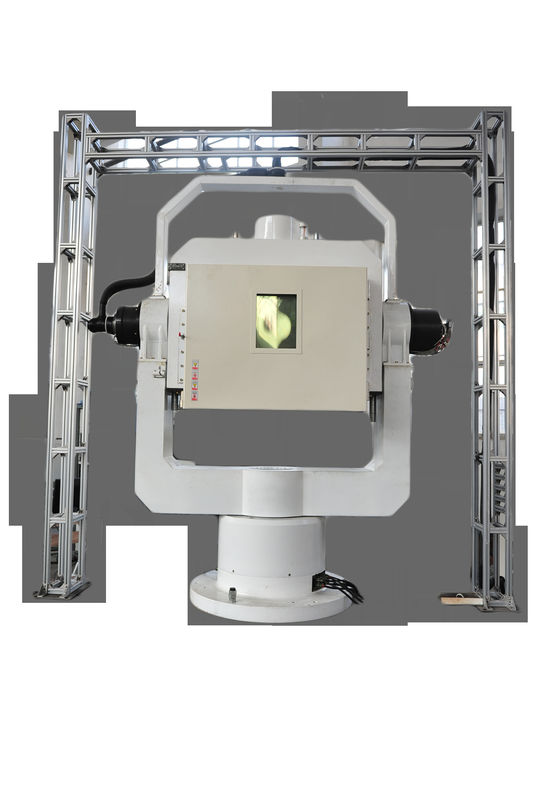

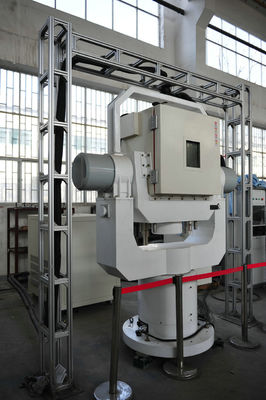

| WKZT3-60 3 axis rate table with temperature chamber | |
| Description | WKZT3-60 3 axis rate table with temperature chamber applies 3 axis U-U-T frame. It is able to do the multi-functional simulation test in condition of high and low temperature. It provides position, rate, swing, high and low temperature test etc.and meet the requirement of all functional tests and experiments for the inertial system and inertial parts. |
| Main technical spec. | |
| Payload: | ≥60Kg(100Kg in maximum) |
| Installation dimension of measured device: | 60mm×600mm×600mm |
| Table's weight: | About 2950Kg |
| Table surface dimension: | φ840mm |
| Table surface flatness: | 0.05mm |
| Table surface beating: | 0.03mm(Test in place of D=450mm) |
| Table surface residule magnetism: | ≤1Gs(1cm above table surface) |
| Wobble error: | ±2″ |
| Axes verticality: | ±2″ |
| Rotational angle range: | Continuous, unlimited |
| Position lock: | 0° and 90° |
| Operation mode | Position, rate, swing |
| Slip ring: | User's slip ring(customized number and power) |
| Electrical control cabinet: | Standard 19 inch cabinet |
| Computer system: | Industrial control computer,Windows interface,RS422,Ethernet(≥100Mbps), Receiving pulse synchronized signal(≥100Hz) |
| Safety precaution: | Real-time display system status and safety protection status, take fault tolerance checking for command to prevent misoperation. |
| Amibient temperature: | 20℃±5℃ |
| Angular position measuring accuracy: | ±2″ |
| Angular position measuring resolution: | 0.36″ |
| Angular position measuring repeatability: | ±1″ |
| Angular position control accuracy: | ±1″ |
| Rate range: | Inner:±0.001～400°/s； Middle:±0.001～300°/s； Outer:±0.001～200°/s； Maximum rate of three axis linkage:±60°/s |
| Rate resolution: | 0.0001°/s |
| Rate accuracy and stability: | ω<1°/s:≤1×10-3(1°average)； 1°/s≤ ω<10°/s:≤1×10-4(10°average)； ω≥10°/s:≤1×10-5(360°average) |
| Maximum acceleration: | Inner 500°/s2,middle 200°/s2,outer 100°/s2 |
| Swing data: | Inner(Pitch):Swing amplitude 0°～±45°,Swing period ≥40s,phase adjustable； Middle(Roll):Swing amplitude 0°～±10°,Swing period≥10s,phase adjustable； Outer(Yaw):Swing amplitude 0°～±200°,Swing period 5s～50s,phase adjustable. |
| Internal dimension of temperature chamber: | 850mm(L)×850mm(W)×700mm(H) |
| Temperature control range: | -55℃～+125℃ |
| Temperature control accuracy and uniformity: | ≤±1℃(Empty chamber) |
| Temperature lift rate: | ≥3℃/min |
| Temperature chamber material: | Inwall and exteriors of six surfaces are metal, middle is heat insulation material |
| Refrigeration mode of temperature chamber: | Mechanical compressor refrigeration |
| Cooling mode of temperature chamber: | Air cooling |
| Driver mode: | Torque motor direct driver |
