| Name: | Swing Test Table | Model: | YBT6-200 6 |
|---|---|---|---|
| Payload Capability: | 200Kg | Installation Dimension Of Measured Device: | φ400mm×400mm |
| Table's Weight: | About 300Kg | Table Surface Dimension: | Ø1000mm |
| High Light: | 2 axis rate table,single axis rate table |
||

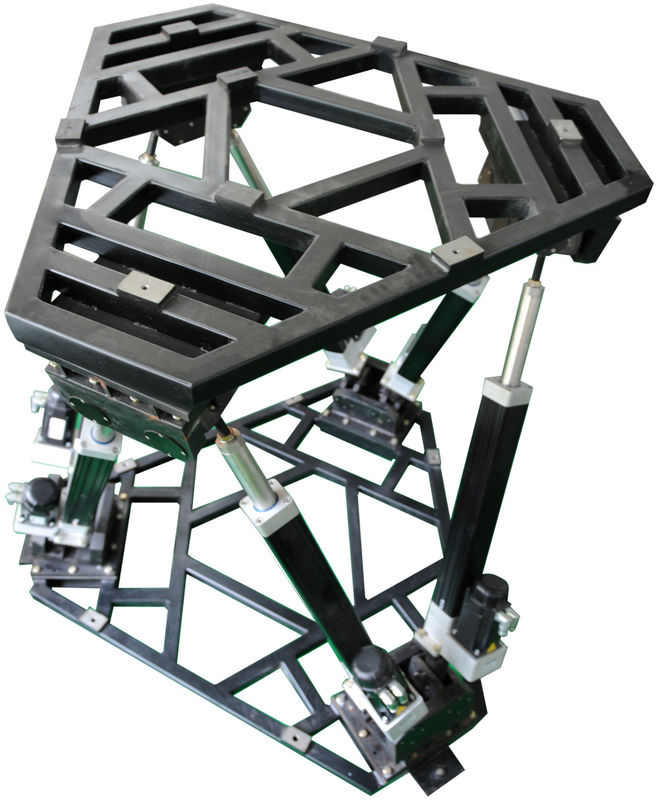

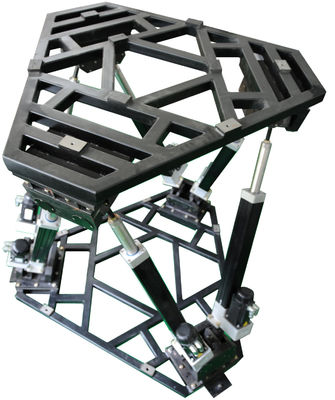

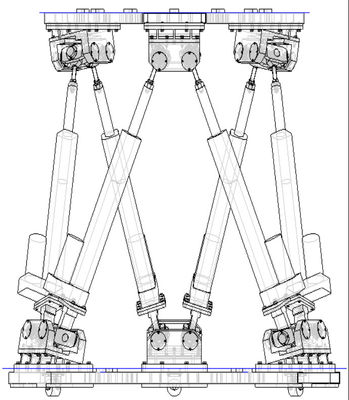

YBT6-200 6 DOF Swing Test Table
Description:
YBT6-200 6 DOF swing test table is able to provide position analog, sine wave analog, single DOF movement, multiple DOF complex movement according to user's setting within certain range, achieve road spectrum wave process, random wave reproduction, road spectrum, wave spectrum, aviation spectrum reproduction etc. functions.
Main technical specification:
| Payload capability: | 200Kg |
| Installation dimension of measured device: | φ400mm×400mm |
| Table's weight: | About 300Kg |
| Table surface dimension: | Ø1000mm |
| Table surface flatness: | 0.01mm |
| Table surface beating: | 0.02mm |
| Movement range: | Pitch rotation:±30°；Heave sway:±0.3m； Roll rotation:±30°；Surge sway:±0.3m； Yaw rotation:±30°；Vertical sway:±0.2m |
| Operation mode | Position, swing, simulation, pre-set wave spectrum etc. |
| Electrical control cabinet: | None(Integrated with table) |
| Computer system: | a |
| Safety precaution: | Real-time display system status and safety protection status;Provide fault tolerance check for command in order to prevent mis-operation. |
| Ambient temperature: | 10℃～40℃ |
| Rotational DOF accuracy: | ≤±3′ |
| Translational accuracy: | ≤±0.5mm |
| Rate range: | Pitch rotation:±20°；Heave sway:±0.3m； Roll rotation:±20°；Surge sway:±0.3m； Yaw rotation:±20°；Vertical sway:±0.3m |
| Maximum acceleration: | Pitch rotation:±200°/s2；Heave sway:±1g； Roll rotation:±200°/s2；Surge sway:±1g； Yaw rotation:±200°/s2；Vertical sway:±1g |
| Movement frequency range: | 0.01Hz～0.5Hz |
| Driver mode: | AC motor drive slow drive through electric cylinder |
