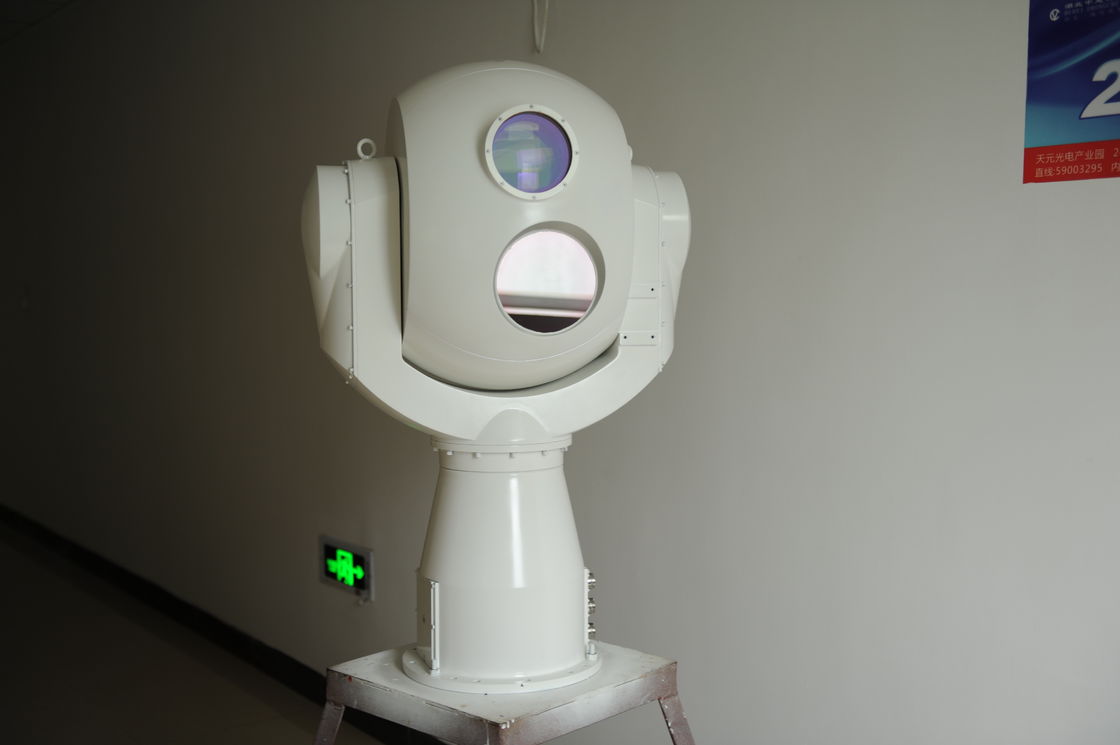

Integrated Electro Optical Surveillance System For Shipboard / Coastal / Border

Integrated Electro Optical Surveillance System For Shipboard / Coastal / Border

Integrated Electro Optical Surveillance System For Shipboard / Coastal / Border

Product Details:

Place of Origin: Wuhan, China
Brand Name: HEOS
Model Number: HEOS-300B

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 30 days
Contact Now
Detailed Product Description
Component Type: Uncooled FPA Detector,650×480 Response Waveband: 8~14μm
Equivalent Noise Temperature Difference: 50mK(25℃) Video Output: Analog Video CCIR
Power Consumption: ≤5W(25℃) Operation Temperature): -20℃~+60℃
High Light:

coastal surveillance system

,

harbor surveillance system

Shipboard Electro-optical Surveillance System



Model

HEOS-102

HEOS-103

HEOS-300C

HEOS-300B

HEOS-300A

Visible light
camera system

1/2”Color CCD / B/W high definition camera system

Visible light
 camera lens

10-200mm,F1.9

15-375mm,F2.3

30-750mm,F4.6

Infrared
thermal imager
    system

no

Uncooled infrared thermal imager:Wave band 7.5-13.5μ m, NETD≤85mK

Cooled infrared thermal imager:Wave band 3-5μ m,NETD≤30mK

Infrared lens

no

125mm prime lens,F1.0

62.5/250mm zoom lens,F4

Laser
illuminator

Wavelength 810nm,output power10W,divergent angle 1°-6°continuous adjustment

Revolving range

page1image35552

Azimuth 360°continuous; Elevation -60°~+30°

Azimuth±170°(optional:360°continuous); Elevation -40°~+85°adjustment

Maximum speed

Azimuth 50°/s Elevation 20°/s

page1image40336

Azimuth 30°/s Elevation 15°/s

40°/s

Maximum
acceleration
Not Available
page1image45464

60°/s2

page1image46976

80°/s2

Screen

17"liquid crystal display

19"liquid crystal display

Gyro stability
page1image54528

no

yes

Automatic
tracking

no

yes

Radar guidance
page1image61960

no

optional

Geography
position show

no

optional

Remote control

optional

optional

Interface

RS-485

Ethernet

Remote control
  agreement

PELCO-D

special

Hard disk video recorder

yes

Technical
specification

Target size: small boat length≥4m, Man overboard 1.6m×0.5m

Daytime: under the condition of atmospheric visibility≥20km,
At night: under the condition of good atmospheric visibility (Clear weather)

Size of target ship 24m×8m,size of ship name and ship number 0.6m×0.6m. Daytime: under the condition of atmospheric visibility≥20km,
At night: under the condition of good atmospheric visibility(Clear weather)

Daytime:
Detection distance

for small boat: 4km, Detection distance for

man overboard:1.5km. At night:
Detection distance for small boat and man overboard ≥600m.

Daytime:
Detection distance

for small boat: 4km, Detection distance for

man overboard:1.5km. At night:
Detection distance for small boat≥1km Detection distance for man overboard≥600m.

Daytime:
Detection distance for target ship>15km; Recognition distance for target ship>8km; Identification distance for ship name and No. >1.2km At night:
Detection distance for target ship>5km; Recognition distance for target ship>2.5km; Identification distance for ship name and No. >0.8km

Daytime:
Detection distance for target ship>20km; Recognition distance for target ship>15km; Identification distance for ship name and No. >1.5km At night:
Detection distance for target ship>15km; Recognition distance for target ship>5km; Identification distance for ship name and No. >0.8km

Dimension/Size

Rotation radius: 390mm Height:450mm

Rotation radius: 430mm Height:475mm

page2image28944

Rotation radius: 250mm Height:750mm

page2image31368

Rotation radius: 350mm Height:1100mm

Weight

Outboard pan/tilt stand: 30kg; Inboard display and control console:20kg

Outboard pan/tilt stand:50kg; Inboard display and control console:20kg

Outboard director:65kg; Inboard display and control console:50kg

page2image38992

Outboard director:100kg; Inboard display and control console:72kg

Outboard director:120kg;
Inboard display and control console:72kg

Environment
adaptability

Outboard equipment:-20°C~+50°C;Outboard equipment:-10°C~+45°C A
