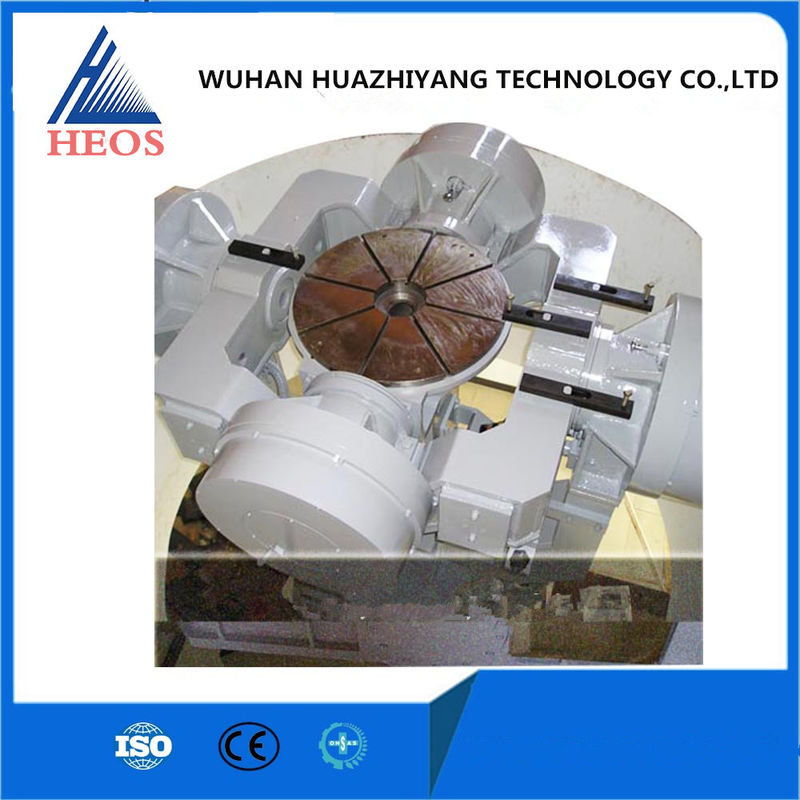

3 Axis Analog Swing Test Table / Position Motion Simulator for Ship Precision

3 Axis Analog Swing Test Table / Position Motion Simulator for Ship Precision

3 Axis Analog Swing Test Table / Position Motion Simulator for Ship Precision

Product Details:

Place of Origin: Wuhan,China
Brand Name: HEOS
Model Number: YBT3-200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 180 days
Contact Now
Detailed Product Description
Color: White Payload: 200kg
Rotational Angle Range: Roll: ±45°;Pitch: ±30°; Yaw: ±90° Operation Mode: Position, Swing
Table's Weight: About 4000kg Ambient Temperature: 10℃~40℃
High Light:

position and swing test device


ship motion simulator

3 Axis Analog Swing Test Table




3 axis swing test table is an analog test device. It is able to provide position, swing etc.


Technical specification:

Load bearing capability 200kg
Payload dimension φ650mm x 1000mm
Dimension of table surface φ650mm
Flatness of table surface 0.03mm
Axes verticality ±10″
Rotational angle range Roll: ±45°; Pitch: ±30°; yaw: ±90°
Operational mode Position, swing
Table’s weight About 4000kg
Computer system and interface Industrial control computer, serial port RS232/RS422 (data 100Hz), Ethernet (≥100Mbps), able to receive synchronized signal≥(100Hz)
Safety precaution Real-time display system status and safety protection status, fault tolerance inspection for command in order to prevent incorrect operation.
Ambient temperature 10℃~40℃
Angular position measuring accuracy ±5″
Angular position measuring resolution 0.36″
Angular position measuring repeatability ±5″
Swing data Roll Amplitude (A) 0°~±45°(continuous adjustable)
Cycle (T) 5 ~16s (continuous adjustable)
Typical value of full-load: swing amplitude:15″, swing cycle≥6s
Pitch Amplitude (A) 0°~±30°(continuous adjustable)
Cycle (T) 3 ~15s (continuous adjustable)
Typical value of full-load: swing amplitude:15″, swing cycle≥6s
Yaw Amplitude (A) 0°~±90°(continuous adjustable)
Cycle (T) 5 ~15s (continuous adjustable)
Typical value of full-load: swing amplitude:10″, swing cycle≥8s
Yaw speed:0°~±20°/s


Company information


Situated in the East Lake High Tech Development Zone, Wuhan Huazhiyang Technology Co., Ltd. is a high tech enterprise established in converting the military technology into civilian product and industrialization, The company has been approved by ISO 9001 quality control system and ISO 14001 environmental system, it is identified as “high tech enterprise” by Wuhan government, has the self-supported import and export right.

Our company owns a group of well educated personnel with research and development ability and management ability, and also has a composite, high efficient, marketing and after service team. The scientific and technical personnel make up 68% of the total employees, with optimized personnel structure and high specialization.

Our company is engaged in research and development, production, technical sales and service etc. of the optical products including large scale electro-optics system, measurement and control system, military series ruggedized displays etc. The company has provided high quality products and servings for over 20 industries including water conservancy, electrical power, chemical industry, petroleum, manufacture of building materials, automotive manufacturing, aerospace, weapons, ship, police, armed police, frontier defense, customs, maritime, salvage, fishery administration, maritime surveillance etc.



Payment terms


T/T, L/C



Packaging & Shipping


  • Packaging: carton with sponge
  • Delivery time: within 7 business days for common order after we receive the full payment


Our services


Pre-sale service

  • Evaluate your application, recommend the most suitable item;
  • Make you fully understand the products, usage and maintenance
  • Answer all your questions, and let you have no doubt before make any decision;
  • Adjust, revise or redesign our products to consist with the application (for customized service);


Sales service

  • Recommend the best payment term and shipping term for you;
  • Make your official quotation and PI with company Stamp;
  • Keep you posted about the products producing;
  • Send exactly required products on time;
  • Provide tracking No. and inform you when products leave factory and arrive destination;


Post-sale service

  • Instruct products connection, installation and application;
  • If anything happen to products (barely will), engineer will evaluate the problem, solve the problem or exchange the malfunction item for free, make sure you get the best solution and service.
  • Keep tracking the products usage and ask for suggestion and advise.




Q: Why choose us?

A: Excellent quality, manufacture price, many experience professional technician, free training. Adhering to “quality products, excellent service”


Q: Can be customize products according to the requirement?

A: YES, the product is designed according to the requirements


Q: If your price is higher than another company or factories?

A: Please check, what is the different of the Products parts, material, service and guarantee, especially the Products technical content. Believe you will choose products of “good value for money”, not cheaper products.


Q: How about the warranty?

A: All of our products have 12 months warranty. free technical support.


Q: What package dose your factory use?

A: International standard carton packaging as your requirement.


Q: what payment terms you can accept

A: Telegraphic Transfer(T/T) or L/C.
